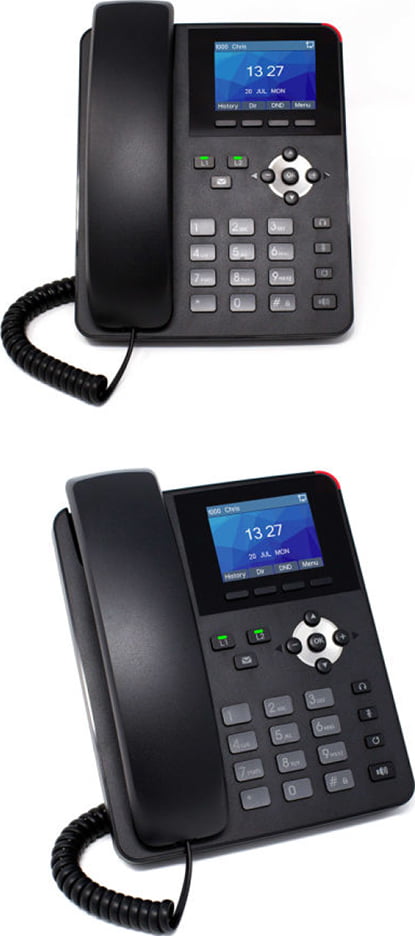

B20 Entry Level IP Handset

The B20 is a quality phone with great functionality, ideal for people who are low usage users or people who do not require a large amount of dedicated function keys. This handset has a slightly larger colour screen than that of the A10 model and supports 1000 Mbps Networking, The B20 handset would suit areas such as unmanned receptions, kitchens, meeting rooms and classrooms.

• Local Phonebook (500 entries)
• Cloud Phonebook
• Call Logs (In/Out/Missed, 600 entries)
• Black/White List Call Filtering
• Screensaver
• Voice Message Waiting Indication (MWI)
• Programmable DSS/BLF/Function Soft Keys
• Headset Support
• Action URL/Active URI

• Call Out/Answer/Reject
• Mute/Unmute (microphone)
• Call Hold/Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up
• Redial/Auto-Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message
• 3-way Conference
• Hot Line
• Hot Desking

• LCD: 2.8” Colour Screen
• Keypad: 28 Keys, including:
  • 4 Soft-Keys
  • 4 Function Keys (MWI, Headset, Mute, Redial)
  • 4 Navigation Keys
  • 1 OK Key
  • 12 Standard Phone Digits Keys
  • 2 Line Keys (with LED Indicator Light)
  • 1 Hands-free Key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• DC Power Input: 5V/1A
• Power Consumption:
  • Idle 0.9~1.65W, Peak 1.8~2.95W
• Working Temperature: 0~40
• Working Humidity: 10~95%

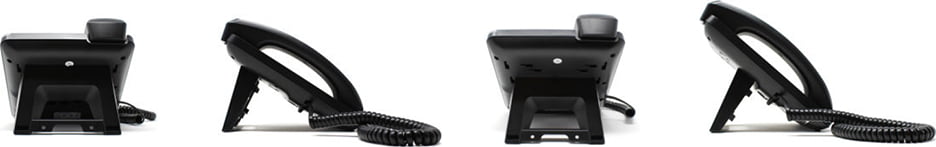

• Installation: Desktop Stand/Wall-mount
• Colour: Black
• Device Dimensions:
  • Desktop Stand (angles 1): 164.3 x 161.7 x 160.1mm
  • Desktop Stand (angles 2): 164.3 x 179 x 139.6mm
  • Wall-Mount: 164.3 x 95 x 208.4mm
• Box Dimensions: 250 x 205 x 70mm (L x W x H)

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• LLDP
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
