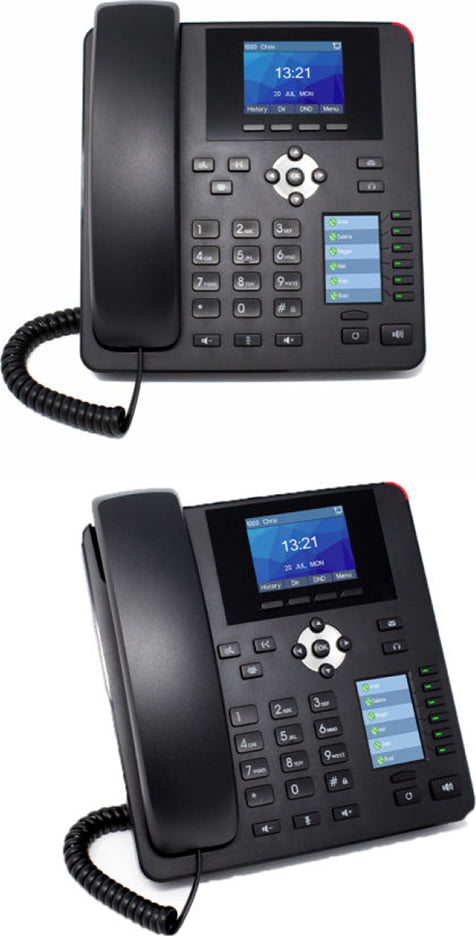

C30 Executive IP Handset

The C30 is an amazing cost-effective executive IP handset packed full of features as standard, complete with a colour screen, digital busy lamp field and a wide range of functions available via the screen, this phone would be choice for many businesses that require ease of functionality at an affordable price.

Phone Features

Local Phonebook (500 entries)
Cloud Phonebook
Call logs (In/Out/Missed, 600 entries)
Black/White List Call Filtering
Screensaver
Voice Message Waiting Indication (MWI)
Programmable DSS/BLF/Function Soft Keys
Supports Plantronics Wireless Headset (Through Plantronics APD-80 EHS cable}
Headset Support
Action URL/Active URI

Call Features

Call Out/Answer/Reject
Mute/Unmute (Microphone)
Call Hold/Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up
Redial/Auto-Redial
Do-Not-Disturb
Auto-Answering
Voice Message
3-way Conference
Hot Line
Hot Desking

Physical Specifications

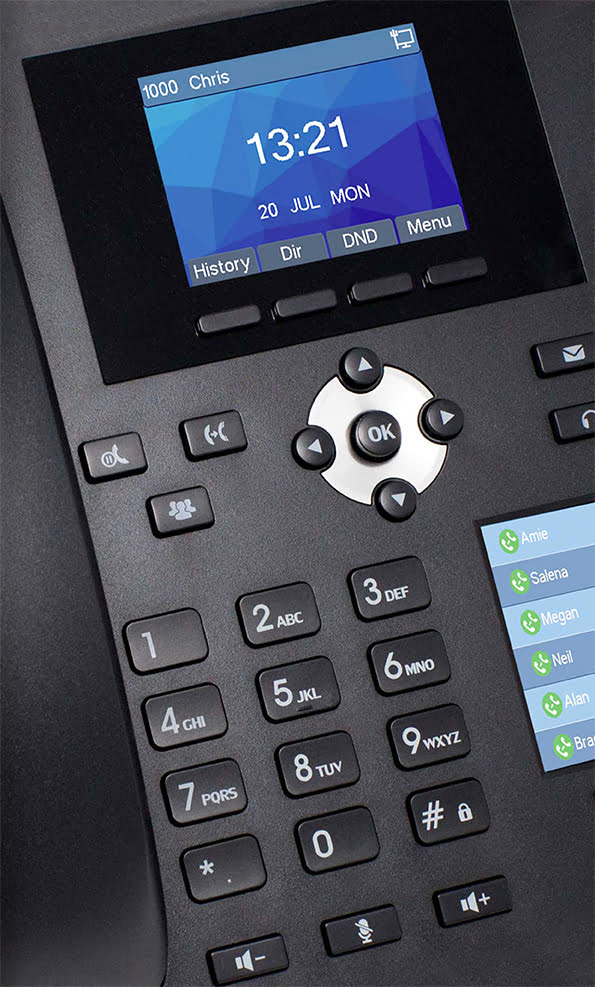

Main LCD x 1: 2.8” Colour Screen LCD
DSS Key-mapping LCD x1: Colour Screen LCD
Keypad: 38 Keys, including:
- 4 Soft-Keys
- 6 Function Keys (Hold, Call forward, Conference, Phonebook, Call Log, Redial)
- 4 Navigation Keys
- 1 OK Key
- 12 Standard Phone Digits Keys
- 3 Volume Control Keys, Up/Down/Mute (Microphone)
- 1 Page-Jump/Configuration (PJC) Key
- 6 DSS Key with Tri-colour LED
- 1 Hands-Free Key
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
DC Power Input 5V/1A
Power Consumption (C):
- Idle 1.8W~2.93, Peak 2.4W~4.4W
Working Temperature: 0~40
Working Humidity: 10~95%
Installation: Desktop Stand/Wall-Mount
Colour: Black

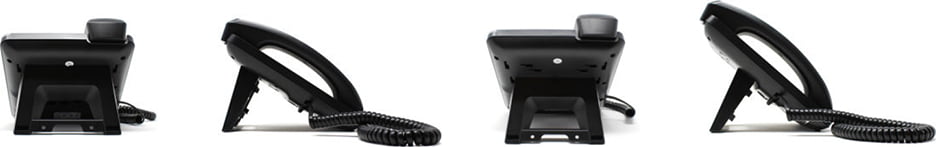

Device Dimensions:
- Desktop Stand (angles 1): 195.8 x 166.1 x 169mm
- Desktop Stand (angles 2): 195.8 x 185 x 147.7mm
Wall-Mount: 195.8 x 103.9 x 216mm
Box Dimensions: 270 x 270 x 65mm (L x W x H)

Model Specifications Comparison

Screen 2.8” + 2.4” colour – Ethernet 10/100/1000Mbps

POE Yes – Power Adapter Optional

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
LLDP
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Generic

4 SIP Lines
HD Voice
POE Enabled
2 LCDs (Main & DSS)
Handset/Hands-free/Headset Mode
lntelligent DSS Keys
Desktop / Wall-Mount lnstallation
Optional External Power Supply

Networking

10/100/1000Mbps Ethernet, Dual Bridged Port for PC Bypass
IP Configuration: Static/DHCP/PPPoE
Network Access Control: 802.1x
VPN: L2TP/OpenVPN
LLDP
VLAN
QoS
RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Deployment & Maintenance

Auto-Provisioning via: FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PnP/TR-069
Web Management Portal
Web-Based Packet-Dump
Configuration Export/Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Audio

HD Voice Microphone/Speaker (Handset/Hands-free,0~7KHz Frequency Response)
Wideband ADC/DAC16KHz Sampling
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
Packet Loss Concealment (PLC}
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-Band, Out-Of-Band – DTMF-Relay (RFC2833)

The above specifications may be updated in the future without prior notice.
All Hardware, Software & PhysicaI features should be based on the final shipped product.
